Tranny Tunnel Vision

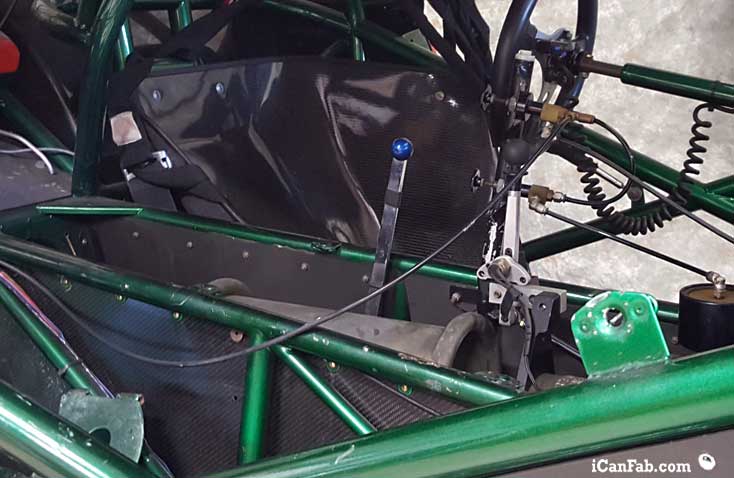

This project showed up missing the trans tunnel cover but had the Dzus tabs mounted.

Double frame rails were high in the car so overall tunnel height was kept to a minimum so carbon fiber dash can be attached and removed easily.

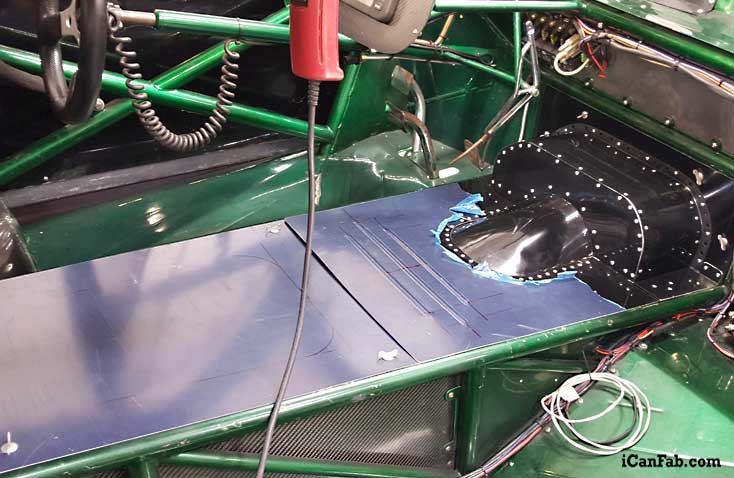

Tunnel sheetmetal is fastened together with aircraft type smash rivets. Still needs a few more Dzus fasteners before final-final.

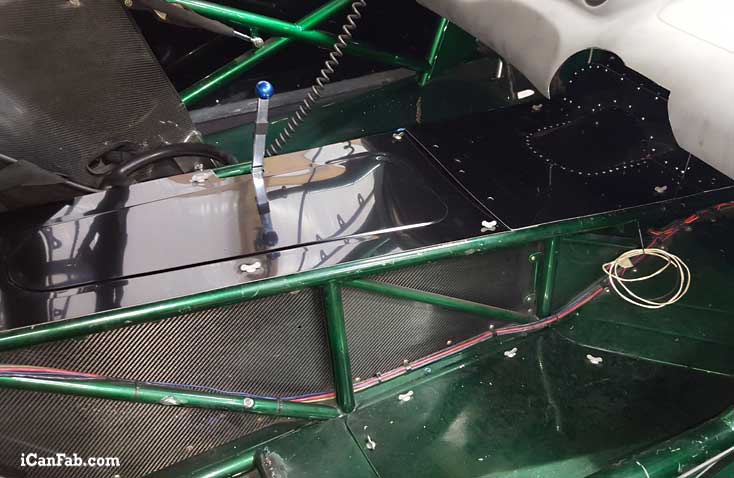

Plastic pulled and Dzus is applied, dash shows hole were old intercooler pipe once lived.

NEXT.
